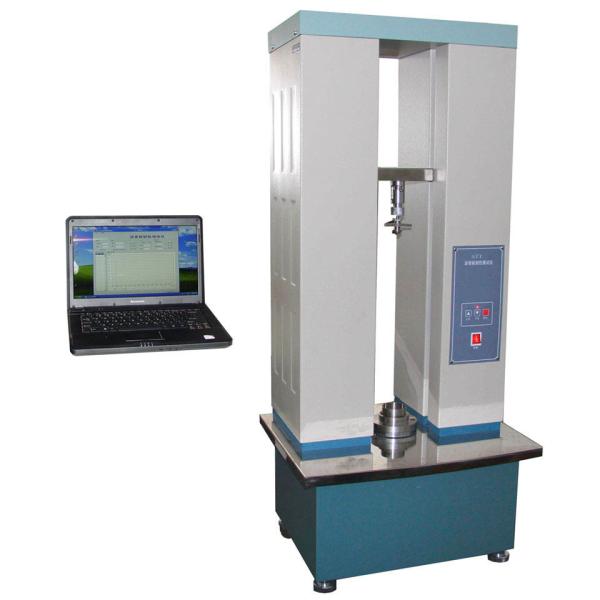

Automatic Asphalt Tenacity Test Apparatus and Bitumen Toughness Tester
Summary
The Asphalt Tenacity Tester is designed and made as per T0624-2011 “Test of Asphalt Tenacity” in the Industry Standard of People’s Republic of China JTG E20-2011 Standard Test Methods for Bitumen and Bituminous Mixtures for Highway Engineering. It is also used to design as per Petrochemical Industry Standard SH/T 0735-2003“Test Method for Asphalt Tenacity”. It is suitable to determine the tenacity under specified conditions and evaluate the effect of asphalt adding modification agent.
I. Main technical characteristics
1. The Bitumen Toughness Tester adopts the requirements of traffic industry and chemical industry .It can choose 300mm or 610mm stretch elongation .The tensile testing machine adopts double wire rod design. Stable and reliable operation, it also has high measuring precision.
The test software that we designed can draw load changing curve, calculate the tenacity and toughness automatically and print test report.
The asphalt tenacity apparatus's test and test results calculation can be finished by the computer. It is convenient to use.
2.The design of the control panel is simple, it can be easy to operate and finish the determination by the uplink key, down key and the stop key. The test results calculation can be finished by the computer automatically.
3.It is equipped with A4 printer, so it can automatically draw and print out load-deformation curve, and tenacity of asphalt.
4.The Bitumen Toughness Testing equipment adopts advanced design, making fastidious, beautiful appearance and simple operation. It also has noble character for high grade instrument. It is ideal choice of relevant construction, supervision, scientific research institutes and colleges.
The best characteristic: it can operate and control the whole procedure by computer. And it can realize the test automatically for the tenacity of asphalt.
II. Main technical specifications:
| 1 | Drag speed | (500mm+10mm)/min |
| 2 | Max drag force | 1000N |
| 3 | Dragging force un-linear error | <0.5% |
| 4 | Dragging force sampling interval | 0.5mm |
| 5 | Max dragging length | 610mm |
| 6 | Power supply | AC220V+10%,50Hz |
| 7 | Maximum power consumption | ≤500W |
| 8 | Dimension | 520mm*400mm*1220mm |
III.Accessories List
| No. | Item | Unit | Qty |
| 1 | Positioning bracket combination | Piece | 3 |
| 2 | Sample cup | Piece | 3 |
| 3 | Backlash reed | Piece | 1 |
| 4 | Laptop | Set | 1 |
| 5 | Serial communication lines | Piece | 1 |
| 6 | Software CD | Piece | 1 |
| 7 | 5A fuse (Φ5 × 20) | Piece | 2 |
IV.Optional Accessories
1. Constant temperature water bath:CWB multifunctional circulation constant temperature water bath (recommend)
